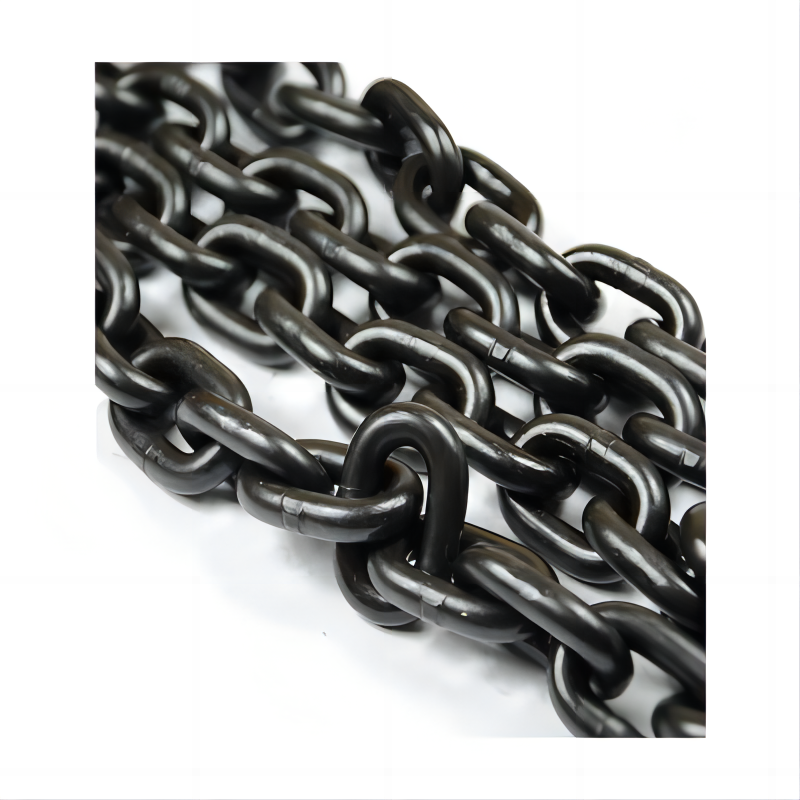

G80 Black Chains For Lifting

Lifting chain is an industrial device used to lift and move heavy objects. It consists of a series of chain links and connecting rings, can bear heavy loads and has high strength and wear resistance. It is widely used in crane, crane, material conveyor and other equipment.

The material of lifting chain is generally made of alloy steel or carbon steel, which is hardened by heat treatment, quenching and other processes to improve its strength and toughness. The links and links of a chain are usually specially designed to enhance their carrying capacity and prevent kinks.

Min. order: 1 Piece

Payment: TT,LC,DA,DP

Shipment: Contact us to negotiate shipping details

Send email to us

Product Detail

Product Tags

Description

A lifting chain is a device used for lifting and transporting heavy objects, usually consisting of multiple metal links. These links can be made of steel, alloy or other materials to withstand the weight and pressure of the heavy objects. Lifting chains are commonly used in mechanical equipment such as cranes, cranes, and elevators to provide stable support and transport capabilities.The lifting chain is an essential and important pick-up device for the crane. The length of the chain can be adjusted according to the lifting height of the lifting object.

Lifting chain surface: polishing, blackening, dipping paint, hanging plastic, electroplating.

Lifting chain manufacturing standards: ISO3077, EN818-2, AS2321.

Lifting chain safety guarantee: 4 times the safety factor, 4 times the test load.

Detailed Description

1. Select materials : high-strength and high-hardness steels with good stability;

2. Simple structure design:Easy to use, easy to replace, save manpower;

3. Product surface treatment :The surface has been polished, painted and other multi-layer processes to protect the product;

4 .Stable performance : After repeated forging processing, the product has high load bearing and is not easy to break;

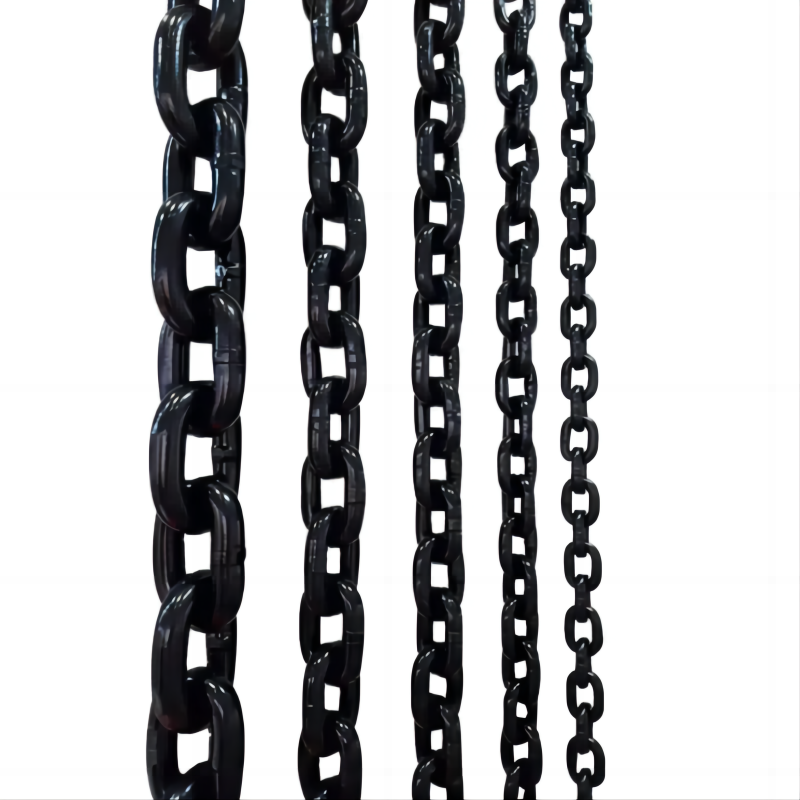

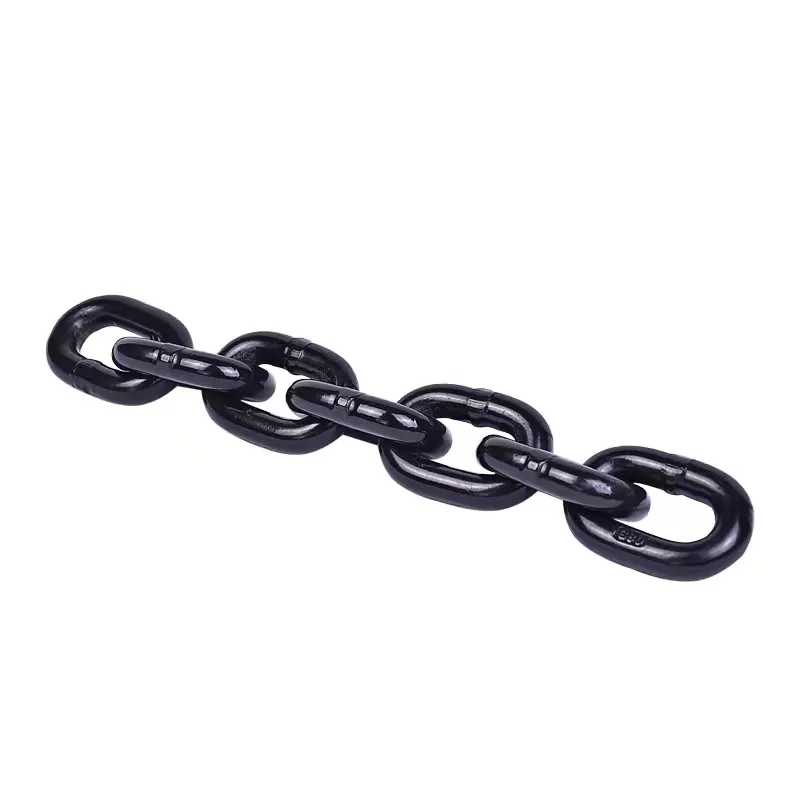

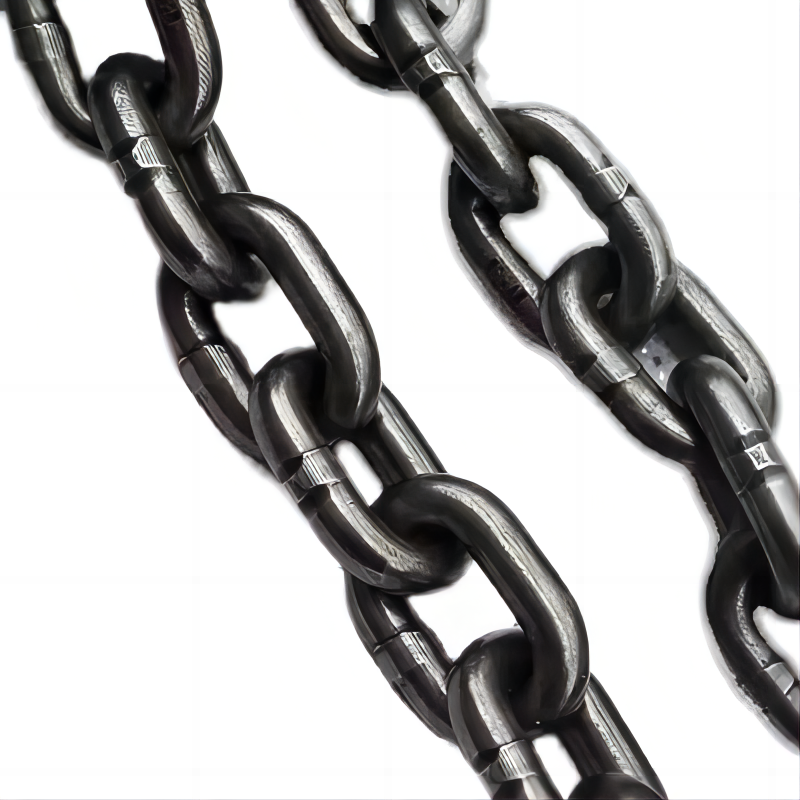

Detail Display

Parameters

Zize dxp(mm)	Width		Approx Weight(kg/m)	Working LoadLimit(t)	Test Load(kN)	BreakingLoad min.KN
Zize dxp(mm)	Inside min.w1	Outside max.w3	Approx Weight(kg/m)	Working LoadLimit(t)	Test Load(kN)	BreakingLoad min.KN
3×9	3.8	10.7	0.21	0.28	7.1	11.3
4×12	5	14.3	0.35	0.5	12.6	20.1
5×15	6.3	17.9	0.54	0.8	19.6	31.4
6×18	7.5	21	0.79	1.1	27	45.2
6.3×19	7.9	22.6	0.86	1.25	31.2	49.9
7×21	9	24.5	1.07	1.5	37	61.6
8×24	10	28	1.38	2	48	80.4
9×27	11.3	32.2	1.76	2.5	63.6	102
10×30	12.5	35	2.2	3.2	76	125
11.2×33.6	14	40.1	2.71	4	98.5	158
11×43	12.6	36.5	2.33	3.8	92	154
12×36	15	42	3.1	4.6	109	181
12.5×38	15.5	42.2	3.3	4.9	117	196
13×39	16.3	46	3.8	5	128	214
14×42	18	49	4.13	6.3	150	250
14×50	17	48	4	6.3	150	250
15×46	20	52	5.17	7	168	280
16×48	20	56	5.63	8	192	320
16×49	24.5	59.5	5.71	8	192	320
16×64	23.9	58.9	5.11	8	192	320
18×54	23	63	6.85	10	246	410
18×54	21	60	6.6	10	246	410
19×57	23.7	63.2	7.7	11.3	270	450
20×60	25	70	8.6	12.5	300	500
22×65	28	74.2	10.7	15.3	366	610
22×66	28	77	10.2	15.3	366	610
22×86	26	74	9.5	15.3	366	610
24×72	32	82	12.78	18	432	720
24×86	28	79	11.6	18	432	720
26×78	35	91	14.87	21.3	510	720
26×92	30	86	13.7	21.3	510	850
